Transporto priemonė: MB 100 D; VIN numerio dalis: 631332
Grupė: 46 STEERING
| # | Kodas | Pavadinimas |
|---|---|---|

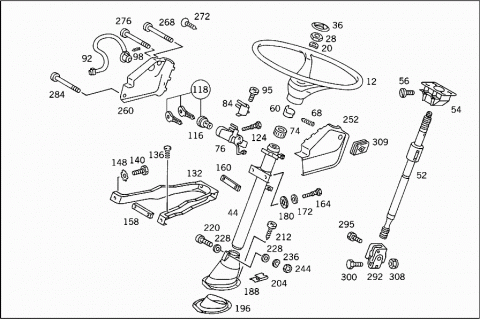

| 012 | A 6314600303 | STEERING WHEEL |
| Repalced by: A 6314600403 | ||
| 012 | A 6314600403 | STEERING WHEEL |
| 020 | N 000137018204 | SPRING WASHER |
| STEERING WHEEL TO STEERING COLUMN | ||
| 028 | N 000439018204 | NUT |
| STEERING WHEEL TO STEERING COLUMN | ||
| 036 | A 0004640432 | BADGE |
| 044 | A 6314600516 | STEER. COLUMN JACKET TUBE |
| 044 | A 6314600616 | STEER. COLUMN JACKET TUBE |
| 044 | A 6314600716 | STEER. COLUMN JACKET TUBE |
| 052 | A 6314601508 | STEERING WORM |
| 052 | A 6314601708 | STEERING WORM |
| 054 | A 6314621839 | BRACKET |
| 056 | N 000084006132 | SCREW |
| BRACKET TO STEERING COLUMN END | ||
| 060 | A 6314620251 | RING |
| STEERING COLUMN BEARING | ||
| 068 | N 000417006001 | HEADLESS SETSCREW |
| STEERING COLUMN BEARING | ||
| 074 | A 6319811410 | NEEDLE BEARING |
| Repalced by: A 0149812810 | ||
| 074 | A 0149812810 | NEEDLE BEARING |
| 076 | A 6314600104 | STEERING LOCK |
| 084 | A 0004600284 | VALVE |
| 092 | A 6315450013 | SWITCH BOX |
| 095 | A 0019901120 | SCREW |
| VALVE TO STEERING LOCK | ||
| 098 | A 0009903577 | SCREW |
| SWITCH BOX TO STEERING LOCK | ||
| A 6314620079 | TUMBLER | |
| HEATER PLUG STARTING SWITCH | ||
| 116 | A 6314600304 | TUMBLER |
| LESS KEY | ||
| 118 | A 6314600404 | TUMBLER |
| WITH 2 KEYS | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| FOR KEY,SEE GROUP 72 | ||
| 124 | A 0004622371 | SCREW |
| (BREAK-OFF BOLT),STEERING LOCK MOUNTING | ||
| 132 | A 6314600835 | BRACKET |
| 136 | A 6314280074 | PIN |
| 140 | N 900161008114 | SCREW |
| BRACKET TO STEERING COLUMN JACKET TUBE | ||
| 148 | N 006798008101 | SERRATED WASHER |
| BRACKET TO STEERING COLUMN JACKET TUBE | ||
| 158 | A 6314621639 | BRACKET |
| STEERING SHAFT TO BRACKET | ||
| 160 | A 6314621739 | BRACKET |
| STEERING SHAFT TO BRACKET | ||
| 164 | A 6314620171 | SCREW |
| STEERING SHAFT TO BRACKET | ||
| 172 | N 000125008418 | WASHER |
| STEERING SHAFT TO BRACKET | ||
| 180 | N 006798008201 | SERRATED WASHER |
| STEERING SHAFT TO BRACKET | ||
| 188 | A 6312670696 | BOOT |
| Repalced by: A 6312671196 | ||
| 188 | A 6312671196 | BOOT |
| 196 | A 6312670496 | BOOT |
| 196 | A 6312671296 | BOOT |
| 204 | A 6319880178 | CLIP |
| BOOT | ||
| 212 | N 007981004261 | SHEET METAL SCREW |
| BOOT | ||
| 220 | N 000912006018 | SCREW |
| BOOT | ||
| 228 | N 000125006421 | WASHER |
| BOOT | ||
| 236 | N 000137006204 | SPRING WASHER |
| BOOT | ||
| 244 | N 000934006007 | NUT |
| BOOT | ||
| 252 | A 6314620343 | SHELL |
| LEFT | ||
| 252 | A 6314620643 | SHELL |
| LEFT | ||
| 260 | A 6314620443 | SHELL |
| RIGHT | ||
| 260 | A 6314620743 | SHELL |
| RIGHT | ||
| 268 | A 3819900321 | SCREW |
| SHELL TO STEERING COLUMN | ||
| 272 | N 007983002205 | SHEET METAL SCREW |
| SHELL TO STEERING COLUMN | ||
| 276 | A 3819900721 | SCREW |
| SHELL TO STEERING COLUMN | ||
| 284 | A 3819900621 | SCREW |
| SHELL TO STEERING COLUMN | ||
| 292 | A 3094600257 | UNIVERSAL JOINT |
| Repalced by: A 6114600057 | ||
| 292 | A 6114600057 | UNIVERSAL JOINT |
| 292 | A 6314600057 | UNIVERSAL JOINT |
| 295 | A 6319900014 | SCREW |
| STEERING SHAFT TO STEERING | ||
| TO 631 460 00 57 | ||
| 300 | A 3169900114 | SCREW |
| Repalced by: A 6319900114 | ||
| 300 | A 6319900114 | SCREW |
| STEERING SHAFT TO STEERING | ||
| TO 611 460 00 57, 309 460 02 57 | ||
| 308 | N 913004008005 | NUT |
| STEERING SHAFT TO STEERING | ||
| TO 611 460 00 57, 309 460 02 57 | ||
| 309 | A 6314620396 | BOOT |
| 309 | A 6314620496 | BOOT |
| 310 | A 6314600635 | BRACKET |
| Repalced by: A 6314601035 | ||
| 310 | A 6314601035 | BRACKET |
| Repalced by: A 6314601235 | ||
| 310 | A 6314601235 | BRACKET |

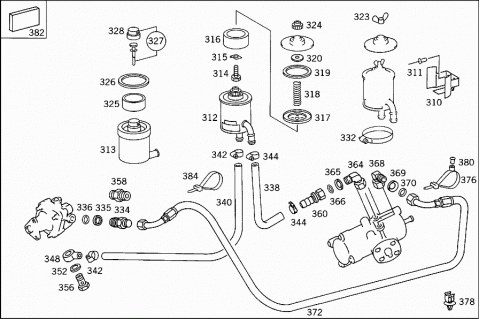

| OIL TANK | ||
| 311 | N 910001004101 | RIVET |
| BRACKET TO BODY | ||
| A 4.8X8 | ||
| 312 | A 6314600083 | OIL TANK |
| Repalced by: A 6314600183 | ||
| 312 | A 6314600183 | OIL TANK |
| 313 | A 3094601083 | OIL TANK |
| 314 | A 0004661571 | SCREW |
| 315 | A 0004660973 | LOCK |
| 316 | A 0004661204 | FILTER |
| 317 | A 0004664905 | COVER |
| 318 | A 0004660293 | SPRING |
| 319 | A 0004661860 | SEAL RING |
| 320 | A 0004661575 | WASHER |
| A 0004663105 | COVER | |
| A 0004668605 | COVER | |
| 323 | A 0009901362 | NUT |
| TO 631 460 00 83 | ||
| 324 | A 0004660368 | FILLER CAP |
| 325 | A 0002360055 | FILTER |
| 326 | A 0004611860 | SEAL RING |
| 327 | A 0004660567 | OIL DIPSTICK |
| 328 | A 1233270059 | PROTECTIVE CAP |
| 332 | N 916017090000 | CLAMP |
| TANK TO BRACKET | ||
| 332 | A 6319972390 | LOOM TIE |
| TANK TO BRACKET | ||
| 332 | A 6319974990 | LOOM TIE |
| TANK TO BRACKET | ||
| 334 | A 6314600287 | CONNECTOR |
| DELIVERY LINE TO PUMP | ||
| 335 | A 0009902942 | WASHER |
| DELIVERY LINE TO PUMP | ||
| 336 | A 0179978348 | SEAL RING |
| DELIVERY LINE TO PUMP | ||
| 338 | A 6319972582 | HOSE |
| FROM STEERING TO OIL TANK | ||
| 338 | A 6319973782 | HOSE |
| FROM STEERING TO OIL TANK | ||
| 338 | A 6319974282 | HOSE |
| FROM STEERING TO OIL TANK | ||
| 340 | A 6319972682 | HOSE |
| FROM TANK TO HOSE | ||
| 340 | A 6319973682 | HOSE |
| FROM TANK TO HOSE | ||
| 342 | A 6319971690 | LOOM TIE |
| Repalced by: A 6319974390 | ||
| 342 | A 6319974390 | LOOM TIE |
| HOSE TO OIL TANK | ||
| 342 | N 916017016000 | CLAMP |
| Repalced by: N 000000000666 | ||
| 342 | N 000000000666 | CLAMP |
| HOSE TO OIL TANK | ||
| 342 | N 000000000666 | CLAMP |
| HOSE TO OIL TANK | ||
| 344 | A 6319971790 | LOOM TIE |
| Repalced by: A 6319974490 | ||
| 344 | A 6319974490 | LOOM TIE |
| HOSE TO OIL TANK | ||
| 344 | A 6319974490 | LOOM TIE |
| DELIVERY LINE TO PUMP | ||
| 344 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 344 | N 000000000667 | CLAMP |
| HOSE TO OIL TANK | ||
| 344 | N 000000000667 | CLAMP |
| DELIVERY LINE TO PUMP | ||
| 344 | A 6319970290 | LOOM TIE |
| HOSE TO OIL TANK | ||
| 344 | A 6319970290 | LOOM TIE |
| DELIVERY LINE TO PUMP | ||
| 348 | A 6319900188 | BANJO UNION |
| FROM POWER STEERING PUMP TO STEERING | ||
| 352 | N 007603018103 | SEAL RING |
| DELIVERY LINE TO PUMP | ||
| 356 | N 915036015200 | HOLLOW SCREW |
| DELIVERY LINE TO PUMP | ||
| 358 | N 003901012011 | SCREW-IN FITTING |
| Repalced by: A 0029971572 | ||
| 358 | A 0029971572 | FITTING |
| DELIVERY LINE TO PUMP | ||
| 360 | A 6314600587 | CONNECTOR |
| LINE TO STEERING | ||
| 364 | A 6314600387 | CONNECTOR |
| LINE TO STEERING | ||
| 365 | A 0009903142 | WASHER |
| LINE TO STEERING | ||
| 366 | A 0179978548 | SEAL RING |
| LINE TO STEERING | ||
| 368 | A 6314600487 | CONNECTOR |
| DELIVERY LINE TO STEERING | ||
| 369 | A 0009903042 | WASHER |
| DELIVERY LINE TO STEERING | ||
| 370 | A 0179978448 | SEAL RING |
| DELIVERY LINE TO STEERING | ||
| 372 | A 6319972782 | HOSE |
| FROM POWER STEERING PUMP TO STEERING | ||
| 372 | A 6319974482 | HOSE |
| FROM POWER STEERING PUMP TO STEERING | ||
| 376 | A 6319971090 | LOOM TIE |
| DELIVERY LINE TO WHEEL ARCH | ||
| 376 | A 1169970890 | LOOM TIE |
| DELIVERY LINE TO WHEEL ARCH | ||
| 378 | A 6319843261 | CLIP |
| HOSE TO BRACKET | ||
| 380 | A 6314280074 | PIN |
| DELIVERY LINE TO WHEEL ARCH | ||
| 380 | A 6314280074 | PIN |
| DELIVERY LINE TO WHEEL ARCH | ||
| 382 | A 6318680187 | STOP |
| 384 | A 3779977590 | LOOM TIE |
| OIL LINES | ||
| 384 | A 3779977290 | LOOM TIE |
| OIL LINES | ||
| 384 | A 0019978390 | LOOM TIE |
| OIL LINES | ||
| 384 | A 6319971390 | LOOM TIE |

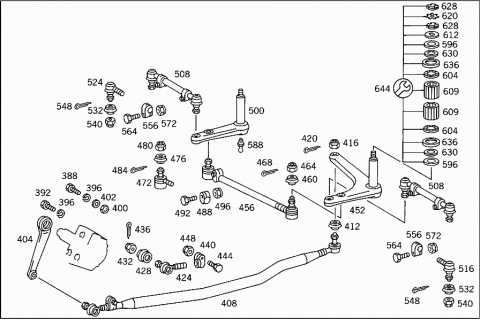

| 388 | N 000960014242 | SCREW |
| STEERING GEAR TO STEERING BRACKET | ||
| M 14X1.5X100 | ||
| 388 | N 000961014028 | SCREW |
| STEERING GEAR TO STEERING BRACKET | ||
| M 14X1.5X40 | ||
| 392 | N 000961014018 | SCREW |
| STEERING GEAR TO STEERING BRACKET | ||
| M 14X1.5X25 | ||
| 396 | N 912004014100 | LOCK WASHER |
| STEERING GEAR TO STEERING BRACKET | ||
| 400 | N 000934014019 | NUT |
| STEERING GEAR TO STEERING BRACKET | ||
| 402 | A 6319900440 | WASHER |
| STEERING GEAR TO STEERING BRACKET | ||
| 404 | A 6314630401 | PITMAN ARM |
| 404 | A 6314631001 | PITMAN ARM |
| 404 | A 6314631101 | PITMAN ARM |
| 408 | A 6314600605 | DRAG LINK |
| 408 | A 6314600705 | DRAG LINK |
| 412 | A 6314630096 | BOOT |
| FIXED PART OF JOINT | ||
| 412 | A 6313380197 | BOOT |
| FIXED PART OF JOINT | ||
| 416 | N 000979012001 | NUT |
| FIXED PART OF JOINT | ||
| 416 | N 000979014001 | NUT |
| FIXED PART OF JOINT | ||
| 420 | N 000094003226 | COTTER PIN |
| FIXED PART OF JOINT | ||
| 3.2X28 MM | ||
| 424 | A 6314630029 | BALL JOINT |
| SCREWED PART OF JOINT | ||
| 424 | A 0004606548 | DRAG LINK END |
| SCREWED PART OF JOINT | ||
| 428 | A 6314630096 | BOOT |
| SCREWED PART OF JOINT | ||
| 428 | A 6313380197 | BOOT |
| SCREWED PART OF JOINT | ||
| 432 | N 000979012001 | NUT |
| SCREWED PART OF JOINT | ||
| 432 | N 000979014001 | NUT |
| SCREWED PART OF JOINT | ||
| 436 | N 000094003226 | COTTER PIN |
| SCREWED PART OF JOINT | ||
| 3.2X28 MM | ||
| 440 | A 6314630017 | CLAMPING PIECE |
| 440 | A 0003380563 | CLAMP |
| 444 | N 000960010026 | SCREW |
| 448 | N 913004010010 | NUT |
| 452 | A 6313300949 | LEVER |
| (REVERSING LEVER) | ||
| 452 | A 6313301649 | LEVER |
| (REVERSING LEVER) | ||
| 456 | A 6313300403 | TIE ROD |
| 456 | A 6313300603 | TIE ROD |
| 460 | A 6313380297 | BOOT |
| FIXED PART OF JOINT | ||
| 460 | A 6313380397 | BOOT |
| FIXED PART OF JOINT | ||
| 464 | N 000979016005 | NUT |
| FIXED PART OF JOINT | ||
| 464 | N 000979018001 | NUT |
| FIXED PART OF JOINT | ||
| 468 | N 000094004055 | COTTER PIN |
| FIXED PART OF JOINT | ||
| 4X28 MM | ||
| 468 | N 000094004065 | COTTER PIN |
| FIXED PART OF JOINT | ||
| 4X36 MM | ||
| 472 | A 6313380510 | BALL JOINT |
| SCREWED PART OF JOINT | ||
| 472 | A 4603301235 | JOINT |
| SCREWED PART OF JOINT | ||
| 472 | A 6313300535 | JOINT |
| SCREWED PART OF JOINT | ||
| 476 | A 6313380297 | BOOT |
| SCREWED PART OF JOINT | ||
| 476 | A 6313380397 | BOOT |
| SCREWED PART OF JOINT | ||
| 480 | N 000979016005 | NUT |
| SCREWED PART OF JOINT | ||
| 480 | N 000979018001 | NUT |
| SCREWED PART OF JOINT | ||
| 484 | N 000094004055 | COTTER PIN |
| SCREWED PART OF JOINT | ||
| 4X28 MM | ||
| 484 | N 000094004065 | COTTER PIN |
| SCREWED PART OF JOINT | ||
| 4X36 MM | ||
| 488 | A 6313380145 | CLAMP |
| 488 | A 0003380563 | CLAMP |
| 488 | A 0009953644 | CLAMP |
| 488 | A 0009957044 | CLAMP |
| 492 | N 000960010026 | SCREW |
| 10X1X40 MM | ||
| 492 | N 000960010023 | SCREW |
| 10X1X45 MM | ||
| 496 | N 913004010010 | NUT |
| 500 | A 6313301149 | LEVER |
| INTERMEDIATE LEVER | ||
| 500 | A 6313301549 | LEVER |
| INTERMEDIATE LEVER | ||
| 508 | A 6313300303 | TIE ROD |
| 508 | A 6313300703 | TIE ROD |
| 516 | A 6313380310 | BALL JOINT |
| LEFT | ||
| 516 | A 6313300435 | JOINT |
| LEFT | ||
| 524 | A 6313380410 | BALL JOINT |
| RIGHT | ||
| 524 | A 0013304835 | JOINT |
| RIGHT | ||
| 532 | A 6313380197 | BOOT |
| 532 | A 6313380297 | BOOT |
| 540 | N 000979014001 | NUT |
| 540 | N 000979016005 | NUT |
| 548 | N 000094003226 | COTTER PIN |
| 3.2X28 MM | ||
| 548 | N 000094004055 | COTTER PIN |
| 4X28 MM | ||
| 556 | A 6313380045 | CLAMP |
| 556 | A 6313380145 | CLAMP |
| 564 | N 000960008002 | SCREW |
| 564 | N 000960010026 | SCREW |
| 572 | N 910113008007 | NUT |
| 572 | N 913004010010 | NUT |
| 588 | N 071412008100 | GREASE NIPPLE |
| 596 | A 0009908540 | WASHER |
| REVERSING LEVER TO BRACKET | ||
| 596 | A 0009908540 | WASHER |
| INTERMEDIATE LEVER TO BRACKET | ||
| 604 | A 6319810710 | NEEDLE BEARING |
| REVERSING LEVER TO BRACKET | ||
| 604 | A 6319810710 | NEEDLE BEARING |
| INTERMEDIATE LEVER TO BRACKET | ||
| 609 | A 6319800110 | NEEDLE BEARING |
| REVERSING LEVER TO BRACKET | ||
| 609 | A 6319800110 | NEEDLE BEARING |
| INTERMEDIATE LEVER TO BRACKET | ||
| 612 | A 6313380276 | WASHER |
| REVERSING LEVER TO BRACKET | ||
| 612 | A 6313380276 | WASHER |
| INTERMEDIATE LEVER TO BRACKET | ||
| 620 | A 6319940012 | LOCK |
| REVERSING LEVER TO BRACKET | ||
| 620 | A 6319940012 | LOCK |
| INTERMEDIATE LEVER TO BRACKET | ||
| 628 | A 1869900060 | NUT |
| REVERSING LEVER TO BRACKET | ||
| 628 | A 1869900060 | NUT |
| INTERMEDIATE LEVER TO BRACKET | ||
| 630 | A 6319900540 | WASHER |
| REVERSING LEVER TO BRACKET | ||
| 630 | A 6319900540 | WASHER |
| INTERMEDIATE LEVER TO BRACKET | ||
| 636 | A 6319970041 | SEAL RING |
| REVERSING LEVER TO BRACKET | ||
| 636 | A 6319970041 | SEAL RING |
| INTERMEDIATE LEVER TO BRACKET | ||
| 644 | A 6313301449 | REPAIR KIT |
| REVERSING LEVER TO BRACKET | ||
| 644 | A 6313301449 | REPAIR KIT |
| INTERMEDIATE LEVER TO BRACKET | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
