Transporto priemonė: MB 140; VIN numerio dalis: 631319

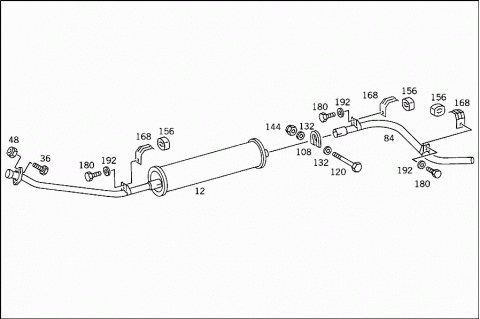

Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 012 | A 6314901701 | EXHAUST MUFFLER |
| WITH FRONT PIPE | ||
| 012 | A 6314902601 | EXHAUST MUFFLER |
| WITH FRONT PIPE | ||
| 036 | N 000931008091 | SCREW |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| M 8X55 | ||
| 048 | N 999901008000 | NUT |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 084 | A 6314902121 | EXHAUST PIPE |
| REAR | ||
| A 6314900015 | CLAMP | |
| PARTS KIT | ||
| 108 | A 6314920240 | CLAMP |
| EXHAUST PIPE TO MUFFLER | ||
| 120 | N 000931008189 | SCREW |
| EXHAUST PIPE TO MUFFLER | ||
| M 8X85 | ||
| 132 | N 007349008003 | WASHER |
| EXHAUST PIPE TO MUFFLER | ||
| 144 | N 913004008001 | NUT |
| EXHAUST PIPE TO MUFFLER | ||
| 156 | A 3814920082 | DAMPING PAD |
| REAR EXHAUST PIPE | ||
| 168 | A 6314900240 | BRACKET |
| 180 | N 000933008028 | SCREW |
| Repalced by: N 000933008145 | ||
| 180 | N 000933008145 | SCREW |
| EXHAUST PIPE TO BRACKET | ||
| 192 | N 000440009100 | WASHER |
| EXHAUST PIPE TO BRACKET | ||
