Transporto priemonė: MB 140; VIN numerio dalis: 631353
Grupė: 47 FUEL SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|

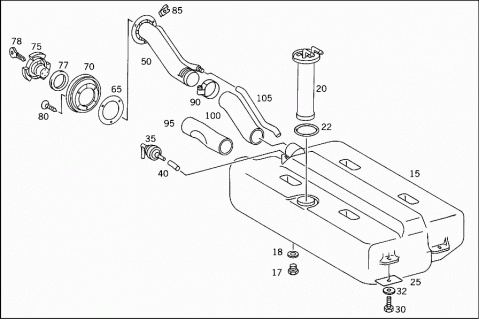

| 015 | A 6314700601 | FUEL TANK |
| 017 | N 007604014102 | SCREW PLUG |
| 018 | N 007603014106 | SEAL RING |
| 020 | A 6315400546 | FUEL GAUGE SENDER UNIT |
| 020 | A 6315400746 | FUEL GAUGE SENDER UNIT |
| 020 | A 6315400846 | FUEL GAUGE SENDER UNIT |
| 020 | A 6315400646 | FUEL GAUGE SENDER UNIT |
| Repalced by: A 6315400546 | ||
| 022 | A 0159975948 | SEAL RING |
| TO 631 540 06 46,07 46 | ||
| 022 | A 0009975149 | GASKET |
| TO 631 540 05 46 | ||
| A 6314770001 | FUEL FILTER | |
| TO 631 540 07 46,08 46 | ||
| 025 | A 6314750076 | WASHER |
| FUEL TANK TO FRAME | ||
| 030 | N 000933010035 | SCREW |
| FUEL TANK TO FRAME | ||
| M 10X25 | ||
| 032 | N 009021010102 | WASHER |
| FUEL TANK TO FRAME | ||
| A 6319973181 | GROMMET | |
| FUEL TANK TO FRAME | ||
| 035 | A 1234700393 | VALVE |
| Repalced by: A 6314700093 | ||
| 035 | A 6314700093 | VALVE |
| (VENT VALVE) | ||
| 040 | A 6319971982 | HOSE |
| FROM TANK TO VALVE | ||
| 45 MM | ||
| 050 | A 6314700664 | LINE |
| FILLER NECK | ||
| 065 | A 6314710079 | SEAL RING |
| 070 | A 6314700079 | INTERMEDIATE PIECE |
| 075 | A 6014710430 | FILLER CAP |
| WITHOUT LOCK UNDEFINED | ||
| 077 | A 0004711280 | GASKET |
| Repalced by: A 0004711080 | ||
| 077 | A 0004711080 | GASKET |
| 078 | A 6014710093 | KEY |
| 080 | N 007982004256 | SHEET METAL SCREW |
| 080 | N 007981004266 | SHEET METAL SCREW |
| 085 | A 0009941645 | LOCK |
| 090 | A 6319971990 | LOOM TIE |
| Repalced by: A 6319974790 | ||
| 090 | A 6319974790 | LOOM TIE |
| HOSE TO FILLER NECK | ||
| 090 | N 916018050000 | CLAMP |
| HOSE TO FILLER NECK | ||
| 090 | A 6319970490 | LOOM TIE |
| HOSE TO FILLER NECK | ||
| 095 | A 6314760326 | HOSE |
| FILLER NECK | ||
| 100 | A 6314760526 | HOSE |
| FILLER NECK | ||
| 105 | A 6319972982 | HOSE |
| Repalced by: A 6319974382 | ||
| 105 | A 6319974382 | HOSE |
| FUEL TANK BREATHING | ||
| 260 MM | ||
| 105 | A 6319974382 | HOSE |
| FUEL TANK BREATHING | ||
| 315 MM | ||

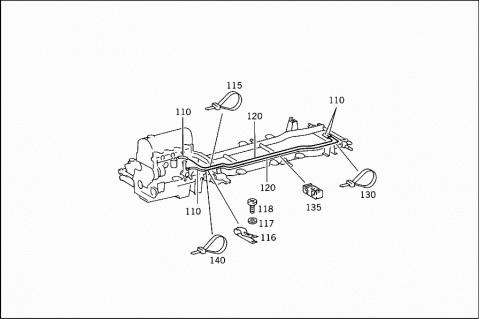

| 110 | A 3774767126 | HOSE |
| FUEL LINE TO ENGINE | ||
| 100 MM | ||
| 110 | A 3774767126 | HOSE |
| FUEL LINE TO TANK | ||
| 100 MM | ||
| 115 | A 3779977190 | LOOM TIE |
| Repalced by: A 6314310543 | ||
| 115 | A 3779977590 | LOOM TIE |
| Repalced by: A 6314310543 | ||
| 116 | A 6314310543 | CLAMP |
| FUEL LINE TO ENGINE | ||
| 117 | N 000125006421 | WASHER |
| FUEL LINE TO ENGINE | ||
| 118 | N 007985006162 | SCREW |
| FUEL LINE TO ENGINE | ||
| 120 | A 0089979082 | HOSE |
| FROM FUEL FILTER TO FUEL TANK | ||
| 4000 MM | ||
| 120 | A 0089979082 | HOSE |
| FROM INJECTION PUMP TO FUEL TANK | ||
| 3660 MM | ||
| A 6314760926 | HOSE | |
| 130 | A 6319971090 | LOOM TIE |
| FUEL LINE | ||
| 135 | A 6314310243 | CLAMP |
| FUEL LINE | ||
| 140 | A 3779977290 | LOOM TIE |
| FUEL LINE | ||
| 140 | A 3779977690 | LOOM TIE |
| FUEL LINE | ||
