Transporto priemonė: MB 160; VIN numerio dalis: 631362
Grupė: 26 TRANSMISSION

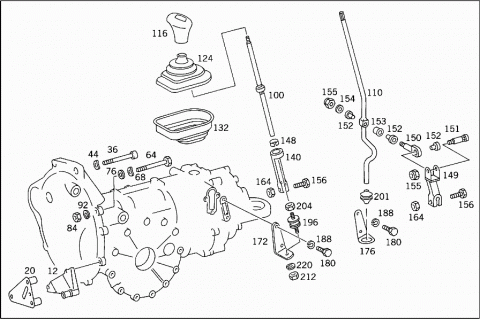

| # | Kodas | Pavadinimas |
|---|---|---|
| 012 | A 6312900021 | BRACING |
| Repalced by: A 6312900421 | ||
| 012 | A 6312900421 | BRACING |
| LEFT | ||
| 020 | A 6312500043 | BRACKET |
| LEFT | ||
| 036 | N 000912012059 | SCREW |
| TRANSMISSION CASE TO ENGINE | ||
| M 12X75 | ||
| 044 | N 000137012203 | SPRING WASHER |
| Repalced by: N 000137012206 | ||
| 044 | N 000137012206 | SPRING WASHER |
| TRANSMISSION CASE TO ENGINE | ||
| 064 | N 000931010236 | SCREW |
| TRANSMISSION CASE TO ENGINE | ||
| M 10X70 | ||
| 064 | N 000931010236 | SCREW |
| TRANSMISSION CASE TO ENGINE | ||
| M 10X70 | ||
| 064 | N 000931010239 | SCREW |
| TRANSMISSION CASE TO ENGINE | ||
| M 10X80 | ||
| 064 | N 000931010229 | SCREW |
| TRANSMISSION CASE TO ENGINE | ||
| M 10X95 | ||
| 068 | N 000137010201 | SPRING WASHER |
| TRANSMISSION CASE TO ENGINE | ||
| 076 | N 000125010518 | WASHER |
| TRANSMISSION CASE TO ENGINE | ||
| 084 | N 000934010014 | NUT |
| TRANSMISSION CASE TO ENGINE | ||
| 092 | N 912004010102 | LOCK WASHER |
| TRANSMISSION CASE TO ENGINE | ||
| 100 | A 6312600939 | SHIFT LEVER |
| 110 | A 6312601039 | SHIFT LEVER |
| 116 | A 6312601040 | HANDLE |
| FIVE-SPEED TRANSMISSION | ||
| 116 | A 6312601140 | HANDLE |
| FIVE-SPEED TRANSMISSION | ||
| 124 | A 6312670096 | BOOT |
| Repalced by: A 6312671096 | ||
| 124 | A 6312671096 | BOOT |
| TOP | ||
| 132 | A 6312670196 | BOOT |
| BOTTOM | ||
| 132 | A 6312670896 | BOOT |
| Repalced by: A 6312670996 | ||
| 132 | A 6312670996 | BOOT |
| BOTTOM | ||
| 140 | A 6312600037 | LEVER |
| SHIFTING TRANSFER | ||
| 148 | A 6312670050 | BUSHING |
| 149 | A 6312670730 | LEVER |
| A 0002602339 | REPAIR KIT | |
| SHIFT LEVER | ||
| 150 | A 6312670374 | PIN |
| 151 | A 6312670474 | PIN |
| 152 | A 6312670450 | BUSHING |
| 153 | A 6312670650 | BUSHING |
| Repalced by: A 6312670550 | ||
| 153 | A 6312670550 | BUSHING |
| 154 | A 6312670276 | WASHER |
| 155 | N 913002008001 | NUT |
| 156 | N 000931010054 | SCREW |
| LEVER TO SHIFTING SHAFT | ||
| M 10X40 | ||
| 164 | N 000934010014 | NUT |
| LEVER TO SHIFTING SHAFT | ||
| 172 | A 6312670240 | BRACKET |
| SHIFTING ROD | ||
| 176 | A 6312670440 | BRACKET |
| SHIFTING ROD | ||
| 176 | A 6312670640 | BRACKET |
| SHIFTING ROD | ||
| 180 | N 000933008147 | SCREW |
| BRACKET TO TRANSMISSION | ||
| M 8X20 | ||
| 188 | N 912004008102 | LOCK WASHER |
| BRACKET TO TRANSMISSION | ||
| 196 | A 6319870039 | RUBBER BUFFER |
| AT SHIFTING ROD | ||
| 201 | A 6312670086 | RUBBER RING |
| AT SHIFTING ROD | ||
| 204 | N 000934008010 | NUT |
| AT SHIFTING ROD | ||
| 212 | N 000934008010 | NUT |
| SHIFT LEVER TO BRACKET | ||
| 220 | N 912004008102 | LOCK WASHER |
| SHIFT LEVER TO BRACKET | ||
| N 000931008058 | SCREW | |
| OIL PAN | ||
| M 8X40 | ||
| N 000137008204 | SPRING WASHER | |
| OIL PAN | ||
