Transporto priemonė: MB 8000/42; VIN numerio dalis: 684492

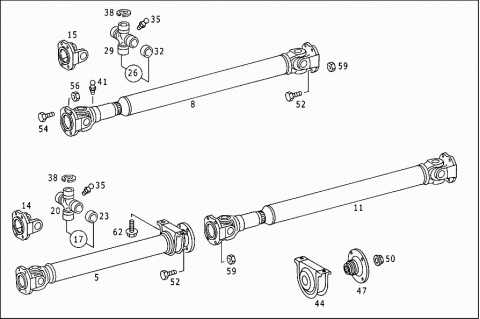

Grupė: 41 PROPELLER SHAFT
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 6844101202 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING | ||
| 005 | A 6844101302 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING | ||
| 005 | A 6844101402 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING | ||
| 008 | A 6844101502 | PROPELLER SHAFT |
| FROM TRANSMISSION TO REAR AXLE | ||
| 011 | A 6844101702 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING TO REAR AXLE | ||
| 011 | A 6844101602 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING TO REAR AXLE | ||
| 014 | A 6844110111 | DRIVE FLANGE |
| 014 | A 6844110111 | DRIVE FLANGE |
| 014 | A 6844110111 | DRIVE FLANGE |
| 015 | A 6844110011 | DRIVE FLANGE |
| 017 | A 6844100131 | UNIVERSAL JOINT CROSS |
| COMPLETE | ||
| 017 | A 6844100131 | UNIVERSAL JOINT CROSS |
| COMPLETE | ||
| 017 | A 6844100131 | UNIVERSAL JOINT CROSS |
| COMPLETE | ||
| 020 | A 6844110031 | UNIVERSAL JOINT CROSS |
| 020 | A 6844110031 | UNIVERSAL JOINT CROSS |
| 020 | A 6844110031 | UNIVERSAL JOINT CROSS |
| 023 | A 6844104042 | BEARING BUSHING |
| 023 | A 6844104042 | BEARING BUSHING |
| 023 | A 6844104042 | BEARING BUSHING |
| 026 | A 6844100131 | UNIVERSAL JOINT CROSS |
| COMPLETE | ||
| 026 | A 6844100131 | UNIVERSAL JOINT CROSS |
| COMPLETE | ||
| 026 | A 6844100131 | UNIVERSAL JOINT CROSS |
| COMPLETE | ||
| 029 | A 6844110031 | UNIVERSAL JOINT CROSS |
| 029 | A 6844110031 | UNIVERSAL JOINT CROSS |
| 029 | A 6844110031 | UNIVERSAL JOINT CROSS |
| 032 | A 6844104042 | BEARING BUSHING |
| 032 | A 6844104042 | BEARING BUSHING |
| 032 | A 6844104042 | BEARING BUSHING |
| 035 | A 6849974088 | GREASE NIPPLE |
| 035 | A 6849974088 | GREASE NIPPLE |
| 035 | A 6849974088 | GREASE NIPPLE |
| 035 | A 6849974088 | GREASE NIPPLE |
| 035 | A 6849974088 | GREASE NIPPLE |
| 035 | A 6849974088 | GREASE NIPPLE |
| 038 | A 6849940041 | LOCK |
| 038 | A 6849940041 | LOCK |
| 038 | A 6849940041 | LOCK |
| 038 | A 6849940041 | LOCK |
| 038 | A 6849940041 | LOCK |
| 038 | A 6849940041 | LOCK |
| 041 | A 0009974888 | GREASE NIPPLE |
| 041 | A 0009974888 | GREASE NIPPLE |
| 041 | A 0009974888 | GREASE NIPPLE |
| 044 | A 6844100022 | INTERMEDIATE BEARING |
| 044 | A 6844100022 | INTERMEDIATE BEARING |
| 044 | A 6844100022 | INTERMEDIATE BEARING |
| 047 | A 6844110045 | FLANGE |
| 047 | A 6844110045 | FLANGE |
| 047 | A 6844110045 | FLANGE |
| 050 | A 6844110072 | NUT |
| 050 | A 6844110072 | NUT |
| 050 | A 6844110072 | NUT |
| 052 | N 308676012010 | HEXAGON HEAD BOLT |
| PROPELLER SHAFT TO REAR AXLE | ||
| 052 | N 308676012010 | HEXAGON HEAD BOLT |
| PROPELLER SHAFT TO PROPELLER SHAFT | ||
| 054 | N 308676012010 | HEXAGON HEAD BOLT |
| PROPELLER SHAFT TO TRANSMISSION | ||
| M12X1.5X40 | ||
| 056 | N 308673012002 | HEXAGON NUT |
| PROPELLER SHAFT TO TRANSMISSION | ||
| 059 | N 308673012002 | HEXAGON NUT |
| PROPELLER SHAFT TO REAR AXLE | ||
| 059 | N 308673012002 | HEXAGON NUT |
| PROPELLER SHAFT TO PROPELLER SHAFT | ||
| 062 | N 910105012007 | SCREW |
| PROPELLER SHAFT | ||
| M 12X1,5X30 |
