Transporto priemonė: MB 800/32; VIN numerio dalis: 684093
Grupė: 26 TRANSMISSION - 090 SHIFT LEVER AND SHIFTING PARTS
| # | Kodas | Pavadinimas |
|---|---|---|

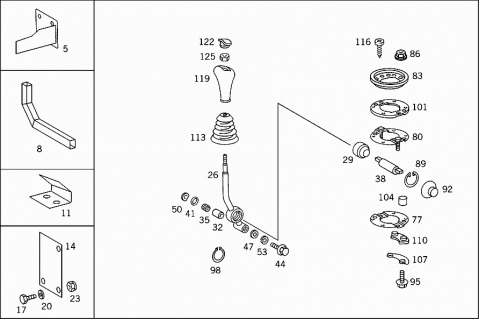

| 005 | A 6842604862 | BRACKET |
| CONSOLE | ||
| 008 | A 6842604260 | SUPPORT |
| CONSOLE | ||
| 011 | A 6842685540 | BRACKET |
| CONSOLE | ||
| 014 | A 6842685440 | BRACKET |
| CONSOLE | ||
| 017 | N 304017010040 | SCREW |
| CONSOLE TO SUPPORT | ||
| M10X25 | ||
| 017 | N 304017008016 | SCREW |
| CONSOLE TO SUPPORT | ||
| M8X16 | ||
| 017 | N 304017008041 | SCREW |
| SHIFT LEVER TO BEARING BRACKET | ||
| M8X40 | ||
| 020 | N 000125008442 | WASHER |
| CONSOLE TO SUPPORT | ||
| 023 | N 910113010001 | NUT |
| CONSOLE TO SUPPORT | ||
| 026 | A 6842605739 | SHIFT LEVER |
| 026 | A 6842605839 | SHIFT LEVER |
| 029 | A 0019813931 | JOINT BEARING |
| 029 | A 0009814531 | JOINT BEARING |
| 032 | A 6732680350 | BUSHING |
| 035 | A 0109818010 | NEEDLE BEARING |
| 035 | A 0119812910 | NEEDLE BEARING |
| 038 | A 3852681474 | PIN |
| SHIFT LEVER BEARING | ||
| 041 | A 0099972648 | SEAL RING |
| SHIFTING TUBE TO SHIFT LEVER | ||
| 044 | A 0019908104 | SCREW |
| SHIFTING TUBE TO SHIFT LEVER | ||
| M 10X20 | ||
| 047 | A 3859900740 | WASHER |
| SHIFTING TUBE TO SHIFT LEVER | ||
| 050 | N 900055016001 | LOCK RING |
| SHIFTING TUBE TO SHIFT LEVER | ||
| 053 | N 000127010202 | LOCK WASHER |
| SHIFTING TUBE TO SHIFT LEVER | ||
| 056 | N 001444010222 | PIN |
| SHIFT LEVER TO BRACKET | ||
| 059 | N 900055010001 | LOCK RING |
| SHIFT LEVER TO BRACKET | ||
| 062 | N 000094003207 | COTTER PIN |
| SHIFT LEVER TO BRACKET | ||
| 065 | A 6842680153 | SPACER TUBE |
| SHIFTING TUBE | ||
| 065 | A 6842684053 | SPACER TUBE |
| YOKE TO TRANSMISSION | ||
| 068 | A 0019909004 | SCREW |
| YOKE TO TRANSMISSION | ||
| M10X60 | ||
| 068 | A 0019904304 | SCREW |
| SHIFTING TUBE | ||
| M8X40 | ||
| 071 | N 000125008417 | WASHER |
| SHIFTING TUBE | ||
| 074 | A 0009906550 | NUT |
| YOKE TO TRANSMISSION | ||
| 074 | A 0009906350 | NUT |
| SHIFTING TUBE | ||
| 077 | A 3892680440 | BRACKET |
| SHIFT LEVER UPPER PART | ||
| 080 | A 3892605262 | BRACKET |
| SHIFT LEVER LOWER PART | ||
| 083 | A 3852601962 | BRACKET |
| SHIFT LEVER BEARING TO CAB FLOOR | ||
| 086 | A 0009906350 | NUT |
| GEARSHIFT LEVER LOWER PART | ||
| 089 | N 000472042001 | LOCK RING |
| GEARSHIFT LEVER LOWER PART | ||
| 092 | A 6202680196 | BOOT |
| SHIFT LEVER BEARING | ||
| 095 | A 0019904204 | SCREW |
| SHIFT LEVER BEARING | ||
| M 8X35 | ||
| 098 | N 000471018001 | LOCK RING |
| SHIFT LEVER BEARING | ||
| 101 | A 3852680392 | RUBBER PAD |
| SHIFT LEVER BEARING | ||
| 104 | A 3892680525 | BUSHING |
| SHIFT LEVER BEARING | ||
| 107 | A 3852681640 | BRACKET |
| SHIFT LEVER BEARING | ||
| 110 | A 3852680492 | RUBBER PAD |
| SHIFT LEVER BEARING | ||
| 113 | A 3892680097 | BOOT |
| SHIFT LEVER | ||
| 116 | N 007981003225 | SHEET METAL SCREW |
| SHIFT LEVER | ||
| 119 | A 6842684042 | KNOB |
| (SHIFT LEVER HANDLE) | ||
| 122 | A 9702680157 | COVER |
| SHIFT LEVER HANDLE | ||
| 122 | A 6842684057 | COVER |
| SHIFT LEVER HANDLE | ||
| 125 | N 308675010000 | NUT |
| SHIFT LEVER HANDLE TO SHIFT LEVER | ||

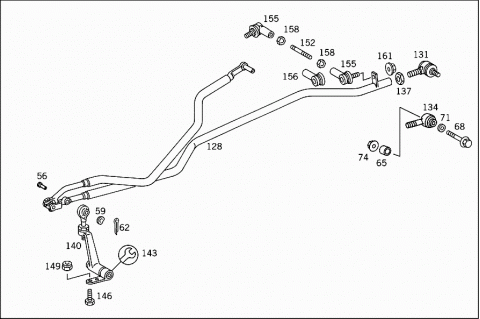

| 128 | A 6842605133 | SHIFTING ROD |
| 128 | A 6842604833 | SHIFTING ROD |
| 128 | A 6842605033 | SHIFTING ROD |
| 131 | A 0009967045 | ARTICULATION PIECE |
| SHIFTING ROD | ||
| 134 | A 6732680089 | JOINT |
| SHIFTING ROD | ||
| 137 | N 000934012021 | NUT |
| SHIFTING ROD | ||
| 137 | N 308675014002 | NUT |
| SHIFTING ROD | ||
| 140 | A 6842604462 | BRACKET |
| SHIFTING ROD | ||
| 140 | A 6842604562 | BRACKET |
| SHIFTING ROD | ||
| 143 | A 6752600362 | REPAIR KIT |
| BRACKET | ||
| 146 | N 304017012020 | SCREW |
| BRACKET TO FRAME | ||
| M 12X30 | ||
| 149 | N 910113012005 | NUT |
| BRACKET TO FRAME | ||
| 152 | A 6842684129 | SHIFTING ROD |
| 152 | A 6842680129 | SHIFTING ROD |
| 152 | A 6842684029 | SHIFTING ROD |
| 152 | N 900331008420 | PULL ROD |
| 155 | A 0009966645 | ARTICULATION PIECE |
| PULL ROD | ||
| 155 | A 0009965545 | ARTICULATION PIECE |
| R.H. THREAD | ||
| 155 | A 0009965645 | ARTICULATION PIECE |
| L.H. THREAD | ||
| 156 | A 6842680289 | JOINT |
| PULL ROD | ||
| 158 | N 304032012003 | NUT |
| JOINT TO PULL ROD | ||
| 158 | N 304032012001 | NUT |
| R.H. THREAD | ||
| 158 | N 304032012002 | NUT |
| L.H. THREAD | ||
| 158 | N 304032008006 | NUT |
| JOINT TO PULL ROD | ||
| 161 | A 0009906550 | NUT |
| PULL ROD |
