Transporto priemonė: MB 800 T; VIN numerio dalis: 397243

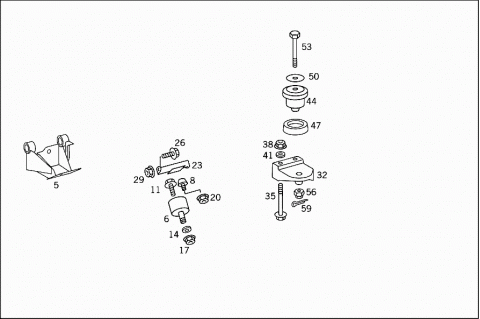

Grupė: 24 ENGINE SUSPENSION
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 6842404001 | ENGINE SUPPORT |
| FRONT LEFT | ||
| 006 | A 6842410313 | RUBBER MOUNTING |
| FRONT | ||
| 008 | A 6842410113 | RUBBER MOUNTING |
| FRONT | ||
| 011 | N 000933010288 | SCREW |
| Repalced by: A 0059901004 | ||
| 011 | A 0059901004 | SCREW |
| RUBBER MOUNTING TO ENGINE SUPPORT | ||
| 014 | N 000125010517 | WASHER |
| RUBBER MOUNTING TO ENGINE SUPPORT | ||
| 017 | N 913004010008 | NUT |
| Repalced by: A 0009906550 | ||
| 017 | A 0009906550 | NUT |
| RUBBER MOUNTING TO ENGINE SUPPORT | ||
| 020 | N 913004006002 | NUT |
| Repalced by: A 0009906250 | ||
| 020 | A 0009906250 | NUT |
| RUBBER MOUNTING TO BRACKET | ||
| 023 | A 6842400065 | STOP |
| RUBBER MOUNT | ||
| 026 | N 000933008282 | SCREW |
| Repalced by: N 910105008005 | ||
| 026 | N 910105008005 | SCREW |
| STOP TO RUBBER MOUNTING | ||
| 029 | N 913004008005 | NUT |
| Repalced by: A 0009906350 | ||
| 029 | A 0009906350 | NUT |
| STOP TO RUBBER MOUNTING | ||
| 032 | A 6842424001 | ENGINE SUPPORT |
| REAR LEFT | ||
| 032 | A 6842424101 | ENGINE SUPPORT |
| REAR RIGHT | ||
| 035 | N 000931014105 | SCREW |
| Repalced by: A 0039900504 | ||
| 035 | A 0039900504 | SCREW |
| SUPPORTING ARM TO ENGINE | ||
| 038 | N 913004014007 | NUT |
| Repalced by: A 0009906950 | ||
| 038 | A 0009906950 | NUT |
| SUPPORTING ARM TO ENGINE | ||
| 041 | A 6842420250 | BUSHING |
| SUPPORTING ARM TO ENGINE | ||
| 044 | A 6842420113 | RUBBER MOUNTING |
| REAR | ||
| 047 | A 6842420065 | RUBBER BUFFER |
| 050 | A 6842420275 | WASHER |
| 053 | A 6842420071 | SCREW |
| A 0039901204 | SCREW | |
| 056 | N 000935014002 | NUT |
| 059 | N 000094003218 | COTTER PIN |
| A 0009906950 | NUT | |
| N 913023014003 | NUT | |
