Transporto priemonė: MB 800 T; VIN numerio dalis: 397243

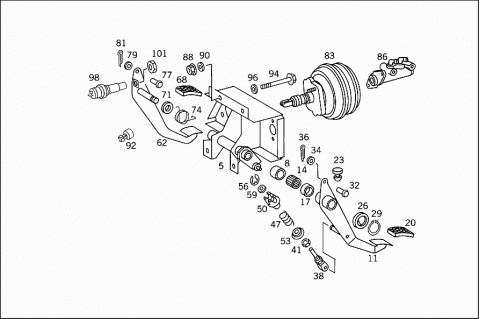

Grupė: 29 PEDAL ASSEMBLY - 090 CLUTCH AND BRAKE PEDAL ASSEMBLY
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 6842900419 | BEARING BRACKET |
| 008 | A 6842910050 | BUSHING |
| 011 | A 6842900116 | PEDAL |
| 014 | A 0119814510 | NEEDLE BEARING |
| CLUTCH PEDAL | ||
| 017 | A 6842910053 | SPACER TUBE |
| CLUTCH PEDAL | ||
| 020 | A 3772910082 | PAD |
| CLUTCH PEDAL | ||
| 023 | A 6732910286 | STOP |
| CLUTCH PEDAL | ||
| 026 | A 6842910076 | WASHER |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 029 | N 000471018001 | LOCK RING |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 032 | A 6842914074 | PIN |
| PISTON ROD TO CLUTCH PEDAL | ||
| 034 | N 000433010504 | WASHER |
| PISTON ROD TO CLUTCH PEDAL | ||
| 036 | N 000094003212 | COTTER PIN |
| PISTON ROD TO CLUTCH PEDAL | ||
| 038 | A 6732900339 | ROD |
| CLUTCH PEDAL | ||
| 041 | N 000439010220 | NUT |
| Repalced by: N 304035010000 | ||
| 041 | N 304035010000 | NUT |
| CLUTCH PEDAL | ||
| 047 | A 6849930101 | SPRING |
| (DEAD CENTER SPRING) | ||
| 047 | A 6849930401 | SPRING |
| (DEAD CENTER SPRING) | ||
| 050 | A 6732910191 | SPRING RETAINER |
| TOP | ||
| 053 | A 6732910291 | SPRING RETAINER |
| BOTTOM | ||
| 056 | N 006799007001 | LOCK PLATE |
| DEAD CENTER SPRING TO LEVER | ||
| 059 | N 000125010517 | WASHER |
| DEAD CENTER SPRING TO LEVER | ||
| 062 | A 6842900018 | PEDAL |
| (BRAKE PEDAL) | ||
| 068 | A 3772910082 | PAD |
| BRAKE PEDAL | ||
| 071 | A 6842920076 | WASHER |
| BRAKE PEDAL TO BEARING BRACKET | ||
| 074 | A 6842920187 | SPRING |
| BRAKE PEDAL RELEASE SPRING | ||
| 074 | A 6842920087 | SPRING |
| BRAKE PEDAL RELEASE SPRING | ||
| 077 | A 6842920174 | PIN |
| BRAKE PEDAL TO BRAKE BOOSTER | ||
| 079 | N 000433008403 | WASHER |
| BRAKE PEDAL TO BRAKE BOOSTER | ||
| 081 | N 000094002059 | COTTER PIN |
| BRAKE PEDAL TO BRAKE BOOSTER | ||
| 083 | A 6844300030 | BRAKE BOOSTER ASSEMBLY |
| "LUCAS" | ||
| 083 | A 6844300130 | BRAKE BOOSTER ASSEMBLY |
| "LUCAS" | ||
| 086 | A 6844300001 | BRAKE MASTER CYLINDER |
| "LUCAS" | ||
| 088 | N 913001008001 | NUT |
| Repalced by: A 0009906350 | ||
| 088 | A 0009906350 | NUT |
| BRAKE BOOSTER TO BEARING BRACKET | ||
| 090 | N 000125008417 | WASHER |
| BRAKE BOOSTER TO BEARING BRACKET | ||
| 092 | A 6842910086 | STOP |
| PEDAL ASSEMBLY TO FIRE WALL | ||
| 094 | N 914125008303 | SCREW |
| Repalced by: N 910106008000 | ||
| 094 | N 910106008006 | SCREW |
| PEDAL ASSEMBLY TO FIRE WALL | ||
| 096 | N 000125008417 | WASHER |
| PEDAL ASSEMBLY TO FIRE WALL | ||
| 096 | N 000440009100 | WASHER |
| PEDAL ASSEMBLY TO FIRE WALL | ||
| 098 | A 6315450709 | SWITCH |
| STOP LIGHT | ||
| 101 | N 080705016006 | NUT |
| STOP LIGHT SWITCH | ||
