Transporto priemonė: OH 1113/1518 INDONESIA; VIN numerio dalis: 684201

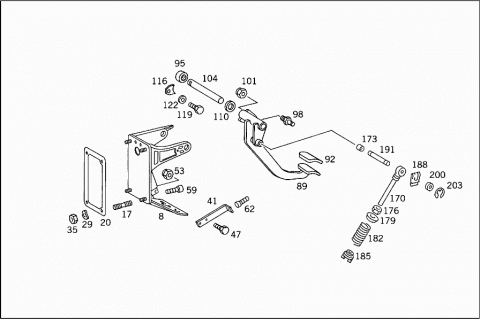

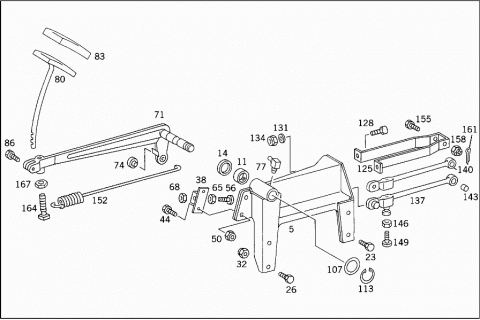

Grupė: 29 PEDALS - 090 CLUTCH AND BRAKE PEDAL ASSEMBLY
| # | Kodas | Pavadinimas |
|---|---|---|
| X XXXXXXXXXXXX | PART NAME MISSING | |
| CLUTCH PEDAL ASSEMBLY | ||
| 005 | A 6842907119 | BEARING BRACKET |
| PEDAL ASSEMBLY | ||
| 008 | A 6882940201 | BEARING BRACKET |
| Repalced by: A 6882947001 | ||
| 008 | A 6882947001 | BEARING BRACKET |
| PEDAL ASSEMBLY | ||
| A 6842907219 | BEARING BRACKET | |
| 011 | A 0059813110 | NEEDLE BEARING |
| 014 | A 0119972746 | SEAL RING |
| 017 | A 6882920070 | STUD |
| 017 | A 6882920170 | STUD |
| 020 | A 6452940080 | GASKET |
| Repalced by: A 6452940280 | ||
| 020 | A 6452940280 | GASKET |
| BEARING BRACKET TO FIRE WALL | ||
| 023 | N 000961012122 | SCREW |
| PEDAL BEARING BRACKET TO SIDE MEMBER | ||
| M 12X1.5X40 | ||
| 026 | N 000961012161 | SCREW |
| PEDAL BEARING BRACKET TO SIDE MEMBER | ||
| M 12X1.5X50 | ||
| 029 | N 000137008204 | SPRING WASHER |
| BEARING BRACKET TO FIRE WALL | ||
| 032 | N 913004012008 | NUT |
| PEDAL BEARING BRACKET TO SIDE MEMBER | ||
| 035 | N 304032008006 | NUT |
| BEARING BRACKET TO FIRE WALL | ||
| 038 | A 6842907033 | BRACKET |
| (PEDAL BEARING BRACKET) | ||
| 041 | A 3842907032 | STOP |
| PEDAL STOP | ||
| 044 | N 000933008153 | SCREW |
| BRACKET TO PEDAL BEARING BRACKET | ||
| 047 | N 000933006221 | SCREW |
| STOP TO BEARING BRACKET | ||
| 050 | N 913004008004 | NUT |
| BRACKET TO PEDAL BEARING BRACKET | ||
| 053 | N 913004006001 | NUT |
| STOP TO BEARING BRACKET | ||
| 056 | A 3012910241 | STOP |
| CLUTCH PEDAL STOP | ||
| 059 | A 3862917086 | STOP |
| Repalced by: A 6882917286 | ||
| 059 | A 6882917286 | STOP |
| PEDAL STOP | ||
| 062 | A 3012910241 | STOP |
| PEDAL STOP | ||
| 065 | N 000439008218 | NUT |
| CLUTCH PEDAL STOP | ||
| 068 | N 000934008000 | NUT |
| PEDAL STOP | ||
| 071 | A 6842907016 | PEDAL |
| CLUTCH | ||
| 074 | A 0009817031 | JOINT BEARING |
| 077 | N 071412010300 | GREASE NIPPLE |
| CLUTCH PEDAL | ||
| 080 | A 3642900024 | PEDAL PLATE |
| CLUTCH | ||
| 083 | A 3052910182 | PAD |
| CLUTCH | ||
| 086 | N 000933010254 | SCREW |
| PEDAL PLATE TO PEDAL | ||
| 089 | A 3862907116 | PEDAL |
| CLUTCH | ||
| 089 | A 6842907216 | PEDAL |
| CLUTCH | ||
| 089 | A 6842907216 | PEDAL |
| CLUTCH | ||
| 092 | A 2012910282 | PAD |
| 092 | A 1102910182 | PAD |
| 092 | A 1102910182 | PAD |
| 095 | A 0019816310 | NEEDLE BEARING |
| 098 | A 6882910074 | PIN |
| 098 | A 3882917074 | PIN |
| 098 | A 3882917074 | PIN |
| 101 | N 913002010001 | NUT |
| 104 | A 6452940074 | PIN |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 107 | A 3079900040 | WASHER |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 110 | A 6732910076 | WASHER |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 113 | N 000471025001 | LOCK RING |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 116 | A 6732920073 | LOCK |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 119 | N 000933006220 | SCREW |
| Repalced by: N 910143006001 | ||
| 119 | N 910143006001 | SCREW |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 122 | N 000125006421 | WASHER |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 125 | A 3642900033 | BRACKET |
| 128 | N 000912008271 | SCREW |
| BRACKET TO PEDAL BEARING BRACKET | ||
| 131 | N 000125008417 | WASHER |
| BRACKET TO PEDAL BEARING BRACKET | ||
| 134 | N 913004008004 | NUT |
| BRACKET TO PEDAL BEARING BRACKET | ||
| 137 | A 6842907043 | CONNECTOR |
| (TENSION SPRING) | ||
| 140 | A 3642910064 | CONNECTOR |
| (TENSION SPRING) | ||
| 143 | A 3072910150 | BUSHING |
| LEFT | ||
| 143 | A 3072910250 | BUSHING |
| RIGHT | ||
| 146 | N 000439008207 | NUT |
| 149 | A 3012910241 | STOP |
| 152 | A 6849937010 | SPRING |
| (TENSION SPRING) | ||
| 155 | A 3079900114 | SCREW |
| TENSION SPRING TO PEDAL BEARING BRACKET | ||
| 158 | N 000979010002 | NUT |
| TENSION SPRING TO PEDAL BEARING BRACKET | ||
| 161 | N 000094002073 | COTTER PIN |
| TENSION SPRING TO PEDAL BEARING BRACKET | ||
| 164 | A 3649900022 | SCREW |
| CLUTCH PEDAL RELEASE SPRING | ||
| 167 | N 080705018002 | NUT |
| CLUTCH PEDAL RELEASE SPRING | ||
| 170 | A 3812901439 | ROD |
| Repalced by: A 3822908419 | ||
| 170 | A 3822908419 | BEARING BRACKET |
| CLUTCH PEDAL | ||
| 173 | A 0059814410 | NEEDLE BEARING |
| 173 | A 0059813810 | NEEDLE BEARING |
| 173 | A 0089811210 | NEEDLE BEARING |
| 176 | N 000934010042 | NUT |
| SPRING TO PUSH ROD | ||
| 179 | A 1112910491 | SPRING RETAINER |
| SPRING TO PUSH ROD | ||
| 182 | A 3869937001 | SPRING |
| SPRING TO PUSH ROD | ||
| 185 | A 3092910091 | SPRING RETAINER |
| SPRING TO PUSH ROD | ||
| 185 | A 3882917091 | SPRING RETAINER |
| Repalced by: A 3092910091 | ||
| 185 | A 3092910091 | SPRING RETAINER |
| SPRING TO PUSH ROD | ||
| 188 | A 6459880178 | CLIP |
| SPRING TO PUSH ROD | ||
| 191 | A 3842917074 | PIN |
| PUSH ROD TO PEDAL | ||
| 191 | A 3842917074 | PIN |
| PUSH ROD TO PEDAL | ||
| 191 | A 3842917074 | PIN |
| PUSH ROD TO PEDAL | ||
| 191 | A 3842917074 | PIN |
| PUSH ROD TO PEDAL | ||
| 191 | A 3842917074 | PIN |
| PUSH ROD TO PEDAL | ||
| 200 | N 001440008002 | WASHER |
| PISTON ROD TO CLUTCH PEDAL | ||
| 203 | N 006799006003 | LOCK PLATE |
| PISTON ROD TO CLUTCH PEDAL | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |

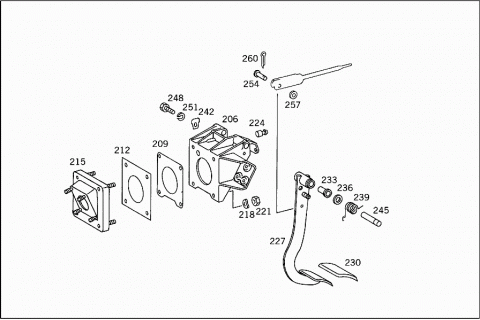

| BRAKE PEDAL ASSEMBLY | ||
| 206 | A 3842947001 | BEARING BRACKET |
| Repalced by: A 3842947201 | ||
| 206 | A 3842947201 | BEARING BRACKET |
| BRAKE PEDAL ASSEMBLY | ||
| 209 | A 3842947080 | GASKET |
| 212 | A 6884310080 | GASKET |
| PEDAL BEARING BRACKET TO FRONT PANEL | ||
| 212 | A 6884310280 | GASKET |
| CLUTCH | ||
| 215 | A 3844307010 | BRACKET |
| SERVICE BRAKE VALVE | ||
| 215 | A 3844307210 | BRACKET |
| SERVICE BRAKE VALVE | ||
| 218 | N 000137008203 | SPRING WASHER |
| PEDAL BEARING BRACKET TO FRONT PANEL | ||
| 221 | N 000934008007 | NUT |
| Repalced by: N 304032008006 | ||
| 221 | N 304032008006 | NUT |
| PEDAL BEARING BRACKET TO FRONT PANEL | ||
| 224 | A 3842917086 | STOP |
| 227 | A 3842907118 | PEDAL |
| BRAKE PEDAL | ||
| 230 | A 1102910182 | PAD |
| BRAKE PEDAL | ||
| 233 | A 1102910550 | BUSHING |
| BRAKE PEDAL | ||
| 236 | A 1154630152 | SPACER WASHER |
| BRAKE PEDAL TO BEARING BRACKET | ||
| 239 | A 3849937020 | SPRING |
| BRAKE PEDAL TO BEARING BRACKET | ||
| 242 | A 3852920073 | LOCK |
| BRAKE PEDAL TO BEARING BRACKET | ||
| 245 | A 3842927174 | PIN |
| Repalced by: A 6452940074 | ||
| 245 | A 6452940074 | PIN |
| BRAKE PEDAL TO BEARING BRACKET | ||
| 248 | N 000933006223 | SCREW |
| Repalced by: N 000000001146 | ||
| 248 | N 000000001146 | SCREW |
| LOCK TO BEARING BRACKET | ||
| 251 | N 000127006203 | LOCK WASHER |
| Repalced by: N 912004006102 | ||
| 251 | N 912004006102 | LOCK WASHER |
| LOCK TO BEARING BRACKET | ||
| 254 | A 3529910007 | PIN |
| PISTON ROD TO BRAKE PEDAL | ||
| 257 | N 000433010500 | WASHER |
| PISTON ROD TO BRAKE PEDAL | ||
| 260 | N 000094003207 | COTTER PIN |
| PISTON ROD TO BRAKE PEDAL | ||
