Transporto priemonė: OH 1113/1518 INDONESIA; VIN numerio dalis: 684201

Grupė: 91 SEATS - 030 FRONT SEAT

#	Kodas	Pavadinimas

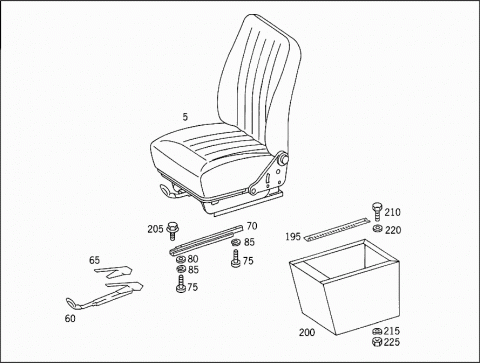

005	A 6849104101	FRONT SEAT
005	A 6849100001	FRONT SEAT

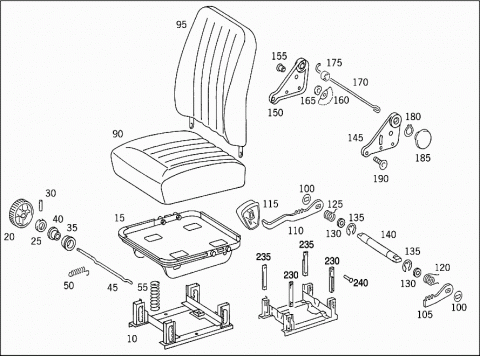

010	A 6849104020	SEAT FRAMEWORK
		TO A 684 910 41 01
015	A 6849104025	CUSHION FRAME
		TO A 684 910 41 01
020	A 3819190260	HANDLE
		HEIGHT ADJUSTMENT
		TO A 684 910 41 01
025	A 3819190413	WASHER
		TO A 684 910 41 01
030	N 001481002509	CLAMPING SLEEVE
		TO A 684 910 41 01
035	A 3819190963	MOUNTING
		TO A 684 910 41 01
040	A 3819191063	MOUNTING
		TO A 684 910 41 01
045	A 3819190298	SHAFT
		TO A 684 910 41 01
050	A 3819190037	SPRING
		TO A 684 910 41 01
055	A 3819190537	SPRING
		HEIGHT ADJUSTMENT
		TO A 684 910 41 01
060	A 3819100005	ADJUSTER
		TO A 684 910 41 01
065	A 3819190837	SPRING
		TO A 684 910 41 01
070	A 3819100289	GUIDE RAIL
		TO A 684 910 41 01
075	N 007985006512	SCREW
		GUIDE RAIL TO SEAT FRAMEWORK
		TO A 684 910 41 01
080	N 000125006420	WASHER
		GUIDE RAIL TO SEAT FRAMEWORK
		TO A 684 910 41 01
085	N 912004006100	LOCK WASHER
		GUIDE RAIL TO SEAT FRAMEWORK
		TO A 684 910 41 01
090	A 6849104030	SEAT CUSHION
		TO A 684 910 41 01
095	A 6849104007	BACKREST
		TO A 684 910 41 01
100	A 3819901440	WASHER
		TO A 684 910 41 01
105	A 3819190861	LEVER
		LEFT
		TO A 684 910 41 01
110	A 3819190761	LEVER
		RIGHT
		TO A 684 910 41 01
115	A 3819190060	HANDLE
		TO A 684 910 41 01
120	A 3819930320	SPRING
		LEFT
		TO A 684 910 41 01
125	A 3819930420	SPRING
		RIGHT
		TO A 684 910 41 01
130	N 000125010517	WASHER
		TO A 684 910 41 01
135	N 006799008005	LOCK PLATE
		TO A 684 910 41 01
140	A 3819190198	SHAFT
		TO A 684 910 41 01
145	A 3819190063	SUPPORTING PLATE
		LEFT
		TO A 684 910 41 01
150	A 3819190163	SUPPORTING PLATE
		RIGHT
		TO A 684 910 41 01
155	A 3819900095	RIVET
		TO A 684 910 41 01
160	A 3819100262	DETENT
		TO A 684 910 41 01
165	N 000137008101	SPRING WASHER
		TO A 684 910 41 01
170	A 3819190337	SPRING
		TO A 684 910 41 01
175	A 3819190022	SUPPORTING RING
		TO A 684 910 41 01
180	N 000471025002	LOCK RING
		TO A 684 910 41 01
185	A 3819190013	CAP
		TO A 684 910 41 01
190	N 914125008713	SCREW
		TO A 684 910 41 01
195	A 3819100427	RAIL
200	A 6849104223	SEAT BOX
		TO A 684 910 41 01
200	A 6849100023	SEAT BOX
205	A 1239901022	SCREW
		RAIL TO SEAT BOX
205	N 000000001152	HEXALOBULAR BOLT
		RAIL TO SEAT BOX
210	N 000000000276	SCREW
		SEAT BOX TO FLOOR
		M8X20
215	N 000137008202	SPRING WASHER
		SEAT BOX TO FLOOR
220	N 000125008417	WASHER
		SEAT BOX TO FLOOR
225	N 000125008417	WASHER
		SEAT BOX TO FLOOR
230	A 3819190175	LEDGE
		REAR LEFT
235	A 3819190275	LEDGE
		REAR RIGHT
240	N 001476003021	GROOVED NAIL
