AUDI Audi Coupe

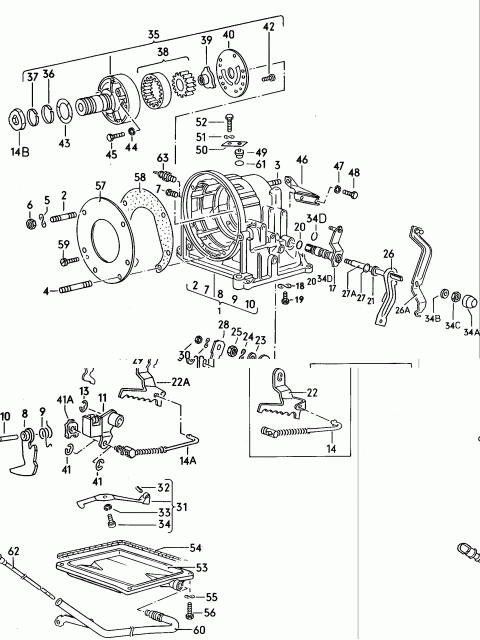

51- reduktorius (automatinis) (RR,KK,KAD,KAH,KAF,RBA,RBD,RBC,RBH,RBG,RBL) Rinktis kitą grupę
51- reduktorius (automatinis) (RR,KK,KAD,KAH,KAF,RBA,RBD,RBC,RBH,RBG,RBL) Rinktis kitą grupę
Džiaugiesi radęs? Pasidalink su draugais!
| # | Kodas | Pastaba | Kiekis |
|---|---|---|---|
| - | KAD;RBA,RBD,RBB;RBE | ||
|
nebegaminama planetary gears w. regulator and turbine shaft |
??? € | ||
| - | 089321022MX | KAF,KAH | 1 vnt. |
| planetary gears w. regulator and turbine shaft | ??? € | ||
| - | 087300036 X | ;RR,RBC | |
| 3-speed automatic gearbox | ??? € | ||
| - | 087300036JX | RBG | 1 vnt. |
| 3-speed automatic gearbox | ??? € | ||
| - | 087321022LX | RBG | 1 vnt. |
| planetary gears w. regulator and turbine shaft | ??? € | ||
| 1 | 010321101G | RR,KK,KAD,;KAH,KAF,R... | 1 vnt. |
| reduktorius | ??? € | ||
| (1) | 087321101B | RBL | 1 vnt. |
| reduktorius | ??? € | ||
| 2 | N 90004402 | 3 vnt. | |
| sriegtas kaištis | M8X56 | ??? € | |
| 3 | N 0145232 | 2 vnt. | |
| sriegtas kaištis | M10AX38-A | ??? € | |
| 4 | N 90004502 | 1 vnt. | |
| sriegtas kaištis | AM8AX164 | ??? € | |
| 5 | N 0122283 | 4 vnt. | |
| spyruoklinė poveržlė | 8 | ??? € | |
| 6 | N 01100822 | 4 vnt. | |
| šešiakampė veržlė | M8 | ??? € | |
| 7 | 003507133A | 3 vnt. | |
| sandarinimo kaištis | M10X1 | ??? € | |
| 8 | 010321117B | 1 vnt. | |
| lever for parking lock | ??? € | ||
| 9 | 010321121A | 1 vnt. | |
| torsion spring | ??? € | ||
| 10 | 010321123 | 1 vnt. | |
| pin - engagement lever | ??? € | ||
| 11 | 010321135 | 1 vnt. | |
| engaging lever for parking lock | ??? € | ||
| 13 | N 0124382 | 1 vnt. | |
| fiksuojanti poveržlė | 9 | ??? € | |
| 14 |
;G >> 18 08 1 |
||
| nebegaminama | ??? € | ||
| 14 | 010321153 |
;;G >> 18 08 1 |
|
| actuating rod with pressure spring | ??? € | ||
| 14A | 010321153C |
;;G 19 08 1>> |
|
|
actuating rod with pressure spring taip pat naudoti: |
;;;010 321 140 | ??? € | |
| 14B | 010321157A | 1 vnt. | |
| adatinis guolis - | ??? € | ||
| 17 | 089321173A | 1 vnt. | |
| lever for cable | ??? € | ||
| 18 | N 0122265 | 1 vnt. | |
| spyruoklinė poveržlė | 6 | ??? € | |
| 19 | N 0102241 | 1 vnt. | |
| varžtas su šešiakampe galvute | M6X13,5 | ??? € | |
| 20 | N 0282012 | 1 vnt. | |
| O-žiedas | 14X2,5 | ??? € | |
| 21 | 010321180B | 1 vnt. | |
| support washer | ??? € | ||
| 22 |
;G >> 18 08 1 |
||
| nebegaminama | ??? € | ||
| 22 | 010321191A |
;G >> 18 08 1 |
|
| locking segment | ??? € | ||
| 22A | 010321193B |
;G 19 08 1>> |
|
| locking segment | ??? € | ||
| 23 | N 90047701 | 1 vnt. | |
| poveržlė | 16X28X2 | ??? € | |
| 24 | N 0122385 | 1 vnt. | |
| spyruoklinė poveržlė | 16 | ??? € | |
| 25 | N 01116415 | 1 vnt. | |
| šešiakampė veržlė | M16X1,5 | ??? € | |
| 25 | N 0111642 | 1 vnt. | |
| šešiakampė veržlė | M16X1,5 | ??? € | |
| 26 | 087321201E | RR,RBA,RBD,;RBC,RBH,... | 1 vnt. |
| lever for push rod | ??? € | ||
| 26A | 089321201C | KK,KAD,KAH,;KAF | 1 vnt. |
| svirtis | ??? € | ||
| 27 | 010321182 | 1 vnt. | |
| O-žiedas | 8,3X2,4 | ??? € | |
| 27A | 010321209C | 1 vnt. | |
| shaft for accelerator cable | ??? € | ||
| 28 |
;G >> 15 10 2 |
||
| nebegaminama | ??? € | ||
| 28 | 010321215E |
;G >> 15 10 2 |
|
| svirtis | ??? € | ||
| (28) | 010321215D |
;G 26 10 2>> |
|
| svirtis | ??? € | ||
| 29 | N 0122283 | 1 vnt. | |
| spyruoklinė poveržlė | 8 | ??? € | |
| 30 | N 0110088 | 1 vnt. | |
| šešiakampė veržlė | M8 | ??? € | |
| 31 | 010321221 | 1 vnt. | |
| leaf spring | ??? € | ||
| 32 | N 0133251 | 1 vnt. | |
| suveržimo mova | 3X14 | ??? € | |
| 33 | N 0120387 | 1 vnt. | |
| spyruoklinis žiedas | 8 | ??? € | |
| 34 | N 01023911 | 1 vnt. | |
| varžtas su šešiakampe galvute | M8X18 | ??? € | |
| 34A | 010321227 | 1 vnt. | |
| dulkių dangtelis | ??? € | ||
| 34B | 010321229 | 1 vnt. | |
| shim | ??? € | ||
| 34C | N 0111371 | 1 vnt. | |
| šešiakampė veržlė | M10X1 | ??? € | |
| 34D | N 0236411 | 1 vnt. | |
| užtvirtinantis žiedas | 10X1 | ??? € | |
| 35 | 010321241F | 1 vnt. | |
| alyvos siurblys | ??? € | ||
| 36 | 003321261 | 2 vnt. | |
| piston ring for oil pump | ??? € | ||
| 37 | 010321261 | 2 vnt. | |
| piston ring for oil pump | ??? € | ||
| 38 | 003321263 | 1 vnt. | |
| gear set | ??? € | ||
| 39 | 003321273 | 1 vnt. | |
| drive for oil pump | ??? € | ||
| 40 | 010321279 | 1 vnt. | |
| plate for oil pump | ??? € | ||
| 41 | N 0124362 |
;G >> 20 01 6 |
|
| fiksuojanti poveržlė | 6 | ??? € | |
| 41A | 010321140 |
;G 21 01 6>> |
|
| užtvirtinanti sąvaržėlė | ??? € | ||
| 42 | N 0141212 | 2 vnt. | |
| varžtas kryžmine galvute | M4X6 | ??? € | |
| 43 | 010323161A | 1 vnt. | |
| traukos tarpinė/poveržlė | 58 | ??? € | |
| 44 | N 0120064 | 5 vnt. | |
| spyruoklinis žiedas | 6 | ??? € | |
| 45 | N 0102213 | 5 vnt. | |
| varžtas su šešiakampe galvute | M6X35 | ??? € | |
| 46 | 089321397 | KK,KAD,KAH,;KAF | 1 vnt. |
| abutment | ??? € | ||
| 47 | N 0120387 | 2 vnt. | |
| spyruoklinis žiedas | 8 | ??? € | |
| 48 | N 01024016 | 2 vnt. | |
| varžtas su šešiakampe galvute | M8X20 | ??? € | |
| 49 | 011321303 | 1 vnt. | |
| antgalis | ??? € | ||
| 50 | 011321307 | 1 vnt. | |
| ranka/alkūnė | ??? € | ||
| 51 | N 0122265 | 1 vnt. | |
| spyruoklinė poveržlė | 6 | ??? € | |
| 52 | N 01021226 | 1 vnt. | |
| varžtas su šešiakampe galvute | M6X12 | ??? € | |
| 53 | 010321359F | 1 vnt. | |
| transmission oil sump | ??? € | ||
| 54 | 010321371B | 1 vnt. | |
| gasket for oil sump | ??? € | ||
| 55 | N 0120387 | 4 vnt. | |
| spyruoklinis žiedas | 8 | ??? € | |
| 56 | N 01024016 | 4 vnt. | |
| varžtas su šešiakampe galvute | M8X20 | ??? € | |
| 57 | 010321383B | 1 vnt. | |
| tarpinė plokštė | ??? € | ||
| 58 | 010321385B | 1 vnt. | |
| tarpinė | ??? € | ||
| 59 | N 0107021 | 1 vnt. | |
| varžtas vidine galvute | M5X15 | ??? € | |
| 60 | 087321405D | RR,RBA,RBD,;RBC,RBH,... | 1 vnt. |
| oil filler pipe | ??? € | ||
| (60) | 089321405D | KK,KAD,KAH,;KAF | 1 vnt. |
| oil filler pipe | ??? € | ||
| 61 | 003321419B | 1 vnt. | |
| O-žiedas | 17,5X3,5 | ??? € | |
| 61 | 003321419 | 1 vnt. | |
| O-žiedas | 24,5 | ??? € | |
| 62 | 087321431C | 1 vnt. | |
|
alyvos lygio matuoklis market orange |
486MM | ??? € | |
| 63 | 171919829A | 1 vnt. | |
| alyvos slegio jungiklis/daviklis | ??? € | ||
